products Name |
Voice Indication System |
|
Specially designed voice speaker can release human voice to notify the driver of obstacle distance. The humanized system is more amiable and friendly. |
|
|
|
|
| 00S Series |
51S Series |
52S Series |
|
|
|
|
| 53S Series |
54S Series |
| |
00S Series
System Composition
|
Model |
Composition |
|
QZ-2000S |
2 sensors/control box/voice speaker |
|
QZ-3000S |
3 sensors/control box/voice speaker |
|

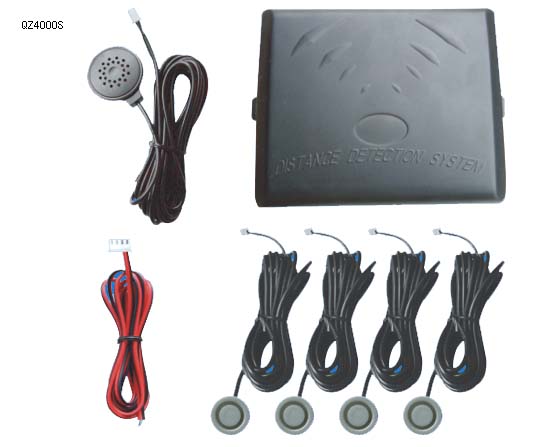

QZ-4000S |
4 sensors/control box/voice speaker |
Sensors Applicable: All types
Control Boxes Applicable: CB-07, CB-08, CB-09
|
|
|
Audible Distance Indication
| 1.50 to 0.80m |
Dang, Dang, Dang |
| 0.80 to 0.40m |
Dang Dang DangDang (the closer, the faster) |
| 0.40 to 0m |
Dang... |
| Human voice distance report at 1.2m, 0.8m, 0.6m or 4, 3 and 2 feet | |
| |
|
General Specifications
|
Working Voltage |
10 to 15V |
|
Working Temperature |
-30℃to 70℃ |
|
Current Consumption |
<100mA |
|
Acoustic Volume |
>85dB at 10cm |
|
Response Time |
300ms |
|
Ultrasonic Frequency |
40KHz | |
| | |
|
| |
|
