products Name

 Video UPS System
ChainStar Ultrasonic Parking Sensor can also work with vehicle monitoring system. When reverse gear is engaged, rear camera and sensors will start to work immediately. Video image and distance of the obstacles will be displayed on the TFT LCD monitor. Upon disengagement of reverse gear, rear camera and sensors will continue to work for another 20s. Then the monitor will resume the status prior to reversing, i. e., back to previous video input, or turn off.

System Composition
Model
Composition
QZ-40B
 4 sensors/control box/buzzer
QZ-40BC
 4 sensors/control box/buzzer/camera

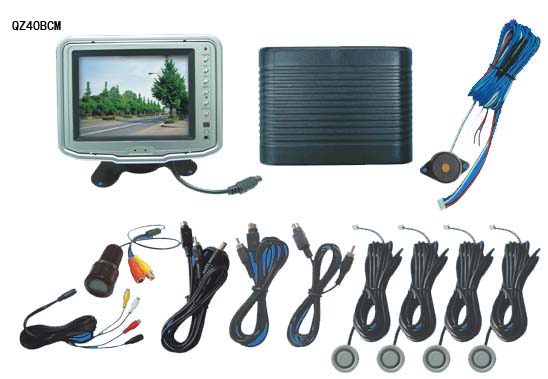

QZ-40BCM
 4 sensors/control box/buzzer/camera/monitor

Sensors Applicable: All types
Control Boxes Applicable: CB-10




Wiring Diagram





Audible Distance Indication
1.50 to 0.80m
 Bi, Bi, Bi
0.80 to 0.40m
 Bi  Bi BiBi (the closer, the faster)
0.40 to 0m
 Bi... (solid beeping)

Visual Distance Indication
3.00 to 0.35m
 Real distance numeric display
0.35 to 0m
 Display 000 and STOP
Flashing arrow on left or right indicating orientation of obstacles

General Specifications
Working Voltage
 10 to 15V
Working Temperature
 -30℃ to 70℃
Current Consumption
 <250mA
Acoustic Volume
 >85dB at 10cm
Response Time
 300ms
Ultrasonic Frequency
 40KHz
